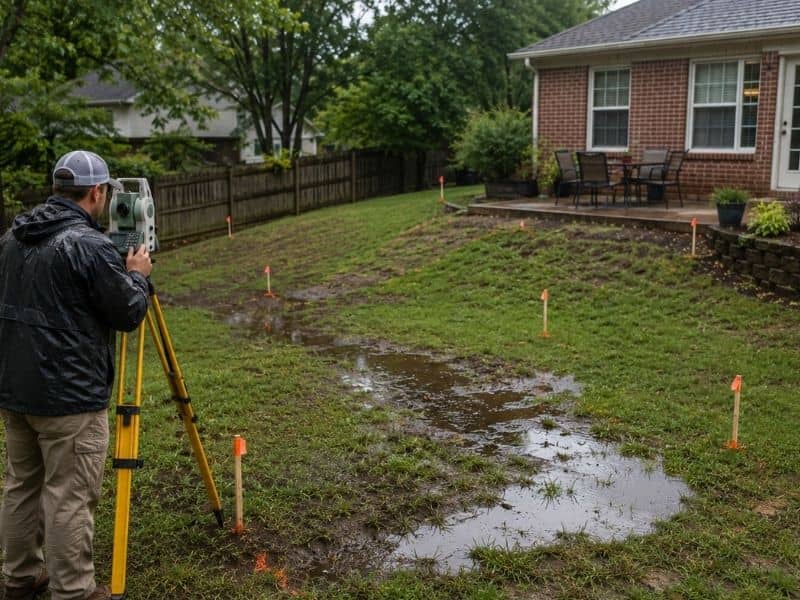

An elevation survey looks at the height of the ground at many spots across a yard. It does not guess. It measures. Each point gets a number that shows how high or low that spot is compared to other spots.

This kind of survey shows the yard as it is right now, before any digging or filling happens. It marks the low spots where the ground dips down. It marks the high points where the ground rises up. It also shows the changes in grade, which just means the small hills and dips that connect one part of the yard to another.

This is not the same as a full topographic survey of the whole property. A topographic survey usually covers a much bigger picture, like the whole lot, roads, and other features. An elevation survey for regrading stays focused. It looks closely at the backyard’s existing ground heights so a homeowner or contractor knows exactly what they are starting withFinding Where Rainwater Is Likely to Collect

Water always moves the same way. It flows from high ground to low ground. So once a survey shows the heights across a yard, it also shows the paths water is likely to take during a storm.

Here is something that surprises a lot of people: a yard can look flat to the eye and still have spots where water collects. Our eyes are not very good at spotting small changes in height. A dip that is only an inch or two lower than the ground around it can be enough to hold water after a heavy rain. You might not notice it just by walking around, but the numbers from a survey will show it clearly.

By comparing all the measured points, a survey can point out these low areas. This does not mean the survey solves the drainage problem. It simply shows, with real numbers, where water is likely to sit longest.

Comparing the Yard’s Grade With the Home and Property Features

A backyard does not exist by itself. It sits next to a house, and often next to patios, walkways, retaining walls, or other built features. An elevation survey can measure the yard’s height in relation to all of these things, not just the open grass area.

This matters a lot. If the ground near the house is lower than the house’s foundation, water could end up flowing toward the home instead of away from it. If a patio sits higher than the surrounding lawn, that can also change how water spreads out during a storm. Walkways and retaining walls can block or redirect water flow too.

Knowing how the yard’s grade lines up with these fixed features helps a homeowner or designer understand the full picture. It shows not just where water might collect, but how it interacts with the structures already in place. This information becomes important later, when someone is deciding how much regard actually makes sense.

Using Existing Elevations to Plan the Amount of Regrading

Once a survey provides a clear set of existing elevation points, that information becomes a starting point for planning. Contractors and designers can look at the numbers and start to understand how much soil might need to be added in some areas and removed in others.

For example, if a low spot needs to be raised so it matches the surrounding grade, the survey shows exactly how much higher that spot needs to go. If a high spot is blocking water from flowing where it should, the survey shows how much lower it may need to be.

It is worth being clear about what the survey does and does not do. The survey provides measured existing conditions. It does not, by itself, tell someone the final drainage plan or design. Think of it as the map that shows where things stand today. The plan for what to do next is a separate step that builds on top of that map.

Why Heavy-Rain Areas Benefit From Elevation Information First

In places like Huntsville, where heavy rain can happen fairly often, backyard drainage problems tend to show up again and again if the ground was never properly measured in the first place. A yard that seems fine most of the year can turn into a soggy mess during a big storm.

For homeowners dealing with repeated water problems in the backyard, starting with an elevation survey gives everyone involved a clear, measured baseline. Instead of guessing where the water keeps coming from, the survey lays out the actual heights across the yard. This baseline can then guide any decisions about grading, especially in a place where heavy rainfall puts extra pressure on drainage every year.

Moving soil around without this information first is a bit like trying to fix a problem in the dark. Getting the existing elevations documented first turns on the light before any work begins.

Frequently Asked Questions

What is an elevation survey for a backyard?

An elevation survey measures the height of the ground at chosen points across the property. This lets everyone see and understand the yard’s existing grade before any changes are made.

Why get an elevation survey before regrading a backyard?

It gives real, measured information about the yard’s current elevations. This helps the project team plan grading work based on actual site conditions instead of just looking at the yard and guessing.

Can an elevation survey show where backyard water may collect?

Yes, in part. The elevation data can point out low areas and high areas that affect how surface water moves across the yard. However, this is not the same as a full drainage or hydraulic analysis, which looks more deeply at how water behaves.

When should an elevation survey be done before regrading?

It should be done during the planning stage, before any digging, filling, or other grading work changes the yard’s existing ground elevations.

Does an elevation survey tell me how to fix backyard drainage?

Not by itself. The survey documents the elevations and existing conditions of the site. Figuring out the right drainage or grading solution usually takes additional design work or a professional evaluation.
