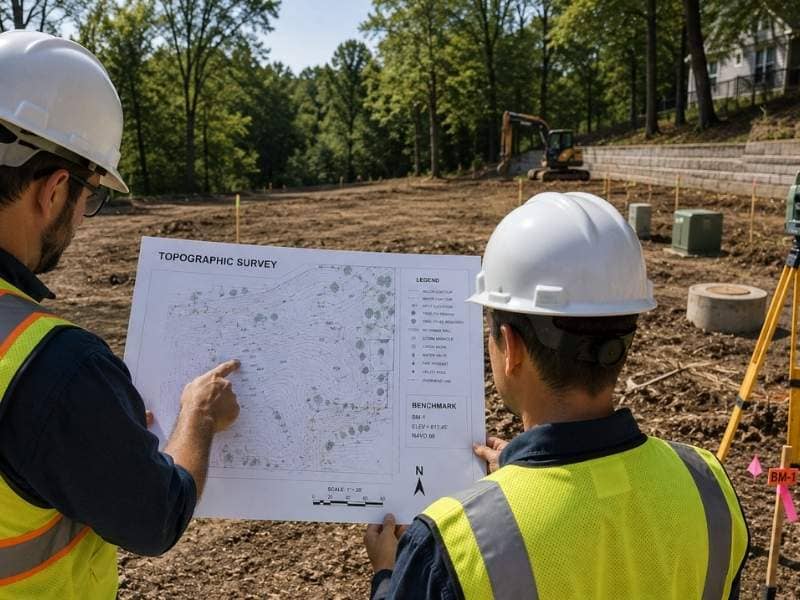

A topographic survey does more than feed the designer a set of contours. For the builder who has to move the dirt, it’s the ground truth every grading decision leans on. Trouble starts when the plan on paper assumes a site the crew never actually finds. A tree the plan meant to save is gone, a utility box sits where the plan called for a cut or the ground has shifted since the shoot. Getting the right detail into the survey, and checking it before the first machine rolls, keeps grading on plan and on budget.

The Site Features a Grading Crew Has to Work Around

A useful topographic survey marks far more than the shape of the land. For a builder, it also pins the fixed things on site that a grading plan has to respect, and each one sets a limit on where the crew can cut or fill. Miss one of these on the survey, and it shows up as a struck utility line or a last-minute redesign in the field.

The features that matter most before grading include:

• Mature trees to keep or clear, shown with trunk location and drip line
• Existing retaining walls, with the elevation at the top and the base
• Utility structures like manholes, valve boxes, transformers and meters
• Ditches, culverts and swales that carry water across the property
• Existing pavement, curbs and structures that either stay or come out
• Site benchmarks and control points the grading crew can hold to

A surveyor who captures these gives the grading team a plan it can trust. The cut-and-fill math that turns those elevations into an earthwork budget depends on accurate topographic survey data.

Why the Site Needs a Fresh Look After Clearing

The site a surveyor mapped is rarely the site a grader works on weeks later. Clearing, demolition and stump removal all change the surface. Pulling an old foundation leaves a hole and a pile of spoil. Grinding stumps drops the grade in spots and leaves voids that settle later. By the time the site is clear, the ground can sit inches off the survey the plan was built on.

That gap matters because the grading plan set its cut-and-fill quantities from the original ground. When the real surface no longer matches, the numbers drift, and the crew ends up hauling more dirt or importing fill nobody budgeted for. A fresh shot of the cleared site, even a partial one over the changed areas, resets the plan to reality before final grading starts. It’s cheap insurance against a quantity surprise that shows up mid-job.

What to Specify So the Data Works on Site

A topographic survey is only as useful as its detail and its reference points. Builders who spell out a few things up front get a survey the grading crew can actually build from. Start with the contour interval. Rough site work can live with two-foot contours, but tight grading around a building pad or a drive usually needs one-foot contours or better to show the real slope.

Spot elevations matter as much as the contours. Ask for shots at the points that decide the grade: building corners, drive entrances, match points where new work meets existing pavement and the top and bottom of every wall. The last piece is the reference. The survey has to tie to a known vertical datum and to an on-site benchmark the crew can hold, or the grader’s stakes and the plan won’t agree. A shared benchmark keeps everyone working from the same zero.

From the Survey to Grade Stakes in the Field

A topographic survey earns its keep when it turns into stakes in the ground. The survey feeds the grading design, and construction staking carries that design back onto the site so the crew knows where to cut, where to fill and how deep. Every rough-grade stake, offset and cut sheet traces back to the elevations the survey recorded.

That’s why the quality of the topo shows up later at the stake. A clean survey tied to solid control makes staking quick and the marks reliable. A loose one, missing shots or built on a shaky benchmark, turns every stake into a guess and slows the whole crew. The builders who plan the survey well at the start spend less time fixing grade in the field. Where a site shows real drainage trouble, our guide to topographic surveys for drainage planning covers how the same data supports a water fix.

Frequently Asked Questions

What should a builder ask a surveyor to capture before grading?

Beyond the contours, ask for the fixed features that limit earthwork: trees to keep or clear, retaining walls with top and base elevations, utility structures, ditches and culverts, existing pavement and a benchmark the crew can hold. Spot elevations at building corners and match points help the grading plan line up with the real site.

Do I need a new topographic survey after clearing the site?

Often, yes. Clearing, demolition and stump removal change the ground, so the cleared surface can sit inches off the original survey. A fresh shot over the changed areas before final grading keeps the cut-and-fill quantities accurate and prevents a surprise haul-off or fill order mid-job.

What contour interval does a grading plan need?

The right interval tracks how tight the work is. Rough site grading can use two-foot contours, while pad and driveway grading usually calls for one-foot contours or finer. The tighter the tolerance on the finished grade, the more detail the survey needs to show.

How does a topographic survey connect to construction staking?

The survey provides the existing elevations behind the grading design, and staking transfers that finished design back to the ground. Crews set rough-grade stakes, offsets and cut marks straight from those numbers, so an accurate survey tied to a solid benchmark makes the staking faster and the grade truer.

Who checks that the survey matches the site before grading?

That falls to the builder and the site team. The surveyor records conditions on the day of the shoot, but it’s on the crew to flag changes since then, like new clearing or a moved utility, and call for an update. Catching a mismatch before grading beats discovering it under a machine.
